JUMO digiLine

Intelligent, bus-capable connection system for digital sensors in liquid analysis

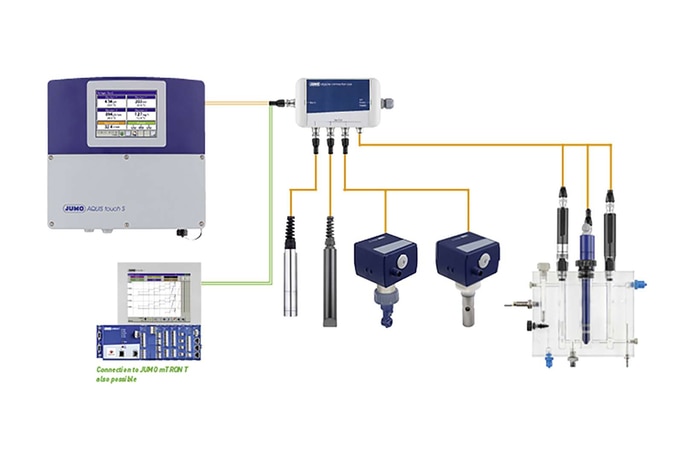

With JUMO digiLine, JUMO presents a bus-compatible connection system for digital sensors in liquid analysis which also offers Plug and Play functionality. JUMO digiLine enables simple construction of sensor networks in which sensors are connected to each other in a star or tree structure. A single shared signal line is used for communication with the next evaluation unit or controller. This way plants in which several parameters need to be measured at the same time in different places can be wired efficiently and quickly.

Your Benefits
Measure various liquid analysis measurands with just one system
Reduction of installation and maintenance times
Simple and reliable calibration

Measure various liquid analysis measurands with just one system

  • Measurands: pH value, temperature, redox potential, conductivity, oxygen concentration, turbidity, disinfection measurands
  • For industrial applications in the process, food, pharmaceutical, and water industry
  • Fail-safe digital data transfer for optimal process monitoring
  • Modular system: for both individual measuring points and for setting up sensor networks
  • Sensors can also be connected to the JUMO mTRON T automation system.

JUMO digiLine on the Hannover Fair 2016

Reduction of installation and maintenance times

  • Specifications and measuring point information (TAG no. etc.) stored in the sensor enable clear identification and assignment of an electrode
  • Plug and Play function for connection to transmitters from the JUMO AQUIS touch series: facilitates the replacement of used sensors or the brief exchange of sensors for calibration purposes
  • The digiLine electronics can still be used when the sensor becomes worn
  • Counters for autoclave, SIP, and CIP cycles enable conclusions to be drawn regarding the previous stresses on the sensor due to cleaning and disinfection routines
  • pH and redox electrodes also feature extended condition monitoring – process conditions are also assessed here to evaluate sensor loading

The scope of functions implemented in a JUMO digiLine sensor and the individually stored data depend on the measurand and the sensor type. Details can be found in the data sheet of the relevant sensor.



MessTec & Sensor Masters Award

The trade journal "messtec drives Automation" annually hands out the MessTec & Sensor Masters Award for particularly innovative developments in measurement and sensor technology. In 2016, the JUMO digiLine system was awarded the prestigious prize. The winners are determined in a multistage process. First, the readers of the trade journal make an initial selection from among all nominated products. At the trade fair MessTec & Sensor Masters the devices are once again presented and the trade fair visitors vote once more time.

MessTec & Sensor Masters Award

Calibration reliable and convenient

  • Simple and reliable calibration of sensors as well as comprehensive measuring point management:
    convenient on a PC with the JUMO DSM (digital sensor management) software tool
  • Configuration, parameterization, and calibration data can be called up directly from the sensor even once  the transmitter has been replaced
  • A calibration logbook provides an overview of the previous calibration history
  • A calibration timer automatically issues a reminder on the digiLine master device for calibrations that are due

The scope of functions implemented in a JUMO digiLine sensor and the individually stored data depend on the measurand and the sensor type. Details can be found in the data sheet of the relevant sensor.

Make an appointment

Dies ist ein Pflichtfeld.
Dies ist ein Pflichtfeld. [required]; Bitte in diesem Feld nur die Zeichen "a-z" oder "A-Z" eingeben. [Eingabe von Ziffern]; Bitte geben Sie Ihren vollständigen Namen ein.[nur 1 Zeichen eingegeben]
Dies ist ein Pflichtfeld. [required]; Bitte in diesem Feld nur die Zeichen "a-z" oder "A-Z" eingeben. [Eingabe von Ziffern]; Bitte geben Sie Ihren vollständigen Namen ein. [nur 1 Zeichen eingegeben]

With your inquiry you set us a task which we would like to fulfil to your satisfaction. The data collected in this context is stored. In order to process your request satisfactorily it is necessary to fill in all available fields (only fields marked with * are mandatory) We use your data to process your request as part of the business process. In particular, we do not pass on any data to third parties. We reserve the right to statistically evaluate anonymous data records.

Sensors with JUMO digiLine electronics

JUMO digiLine pH pH combination electrodes
  • Stable and reliable measured values
  • Low maintenance and robust
  • Extended operating life
JUMO digiLine Rd Redox combination electrodes
  • Dirt-repelling PTFE diaphragm
  • Low diffusion potentials
  • Double chamber version
JUMO digiLine T For temperature compensation during pH measurements
  • Double Pt100 optionally possible
  • Different process applications
  • High degree of measuring accuracy

JUMO digiLine CR and JUMO digiLine Ci

JUMO digiLine CR Transmitter with conductive conductivity sensor – separate and compact design type
  • Measuring range according to product type from 0,05 µS/cm to 600 mS/cm
  • Pre-emptive maintenance thanks to JUMO DSM
  • Optimum process monitoring
JUMO digiLine Ci Transmitter with inductive conductivity sensor – separate and compact design type
  • Measuring range: 50 µS/cm to 2000 mS/cm
  • Pre-emptive maintenance thanks to JUMO DSM
  • Optimum process monitoring

JUMO digiLine compatible sensors

JUMO ecoLine O-DO Optical sensor for dissolved oxygen
  • Quick response time
  • High degree of measuring accuracy
  • No minimum inflow
JUMO ecoLine NTU Optical sensor for turbidity measurements
  • Option to set 4 individual measuring ranges
  • Integrated temperature sensor
  • High degree of measuring accuracy
JUMO tecLine Sensor for free chlorine, total chlorine, chlorine dioxide, ozone, hydrogen peroxide, peracetic acid or bromine
  • Easy calibration
  • Two-/three-electrode principle
  • Integrated temperature compensation
