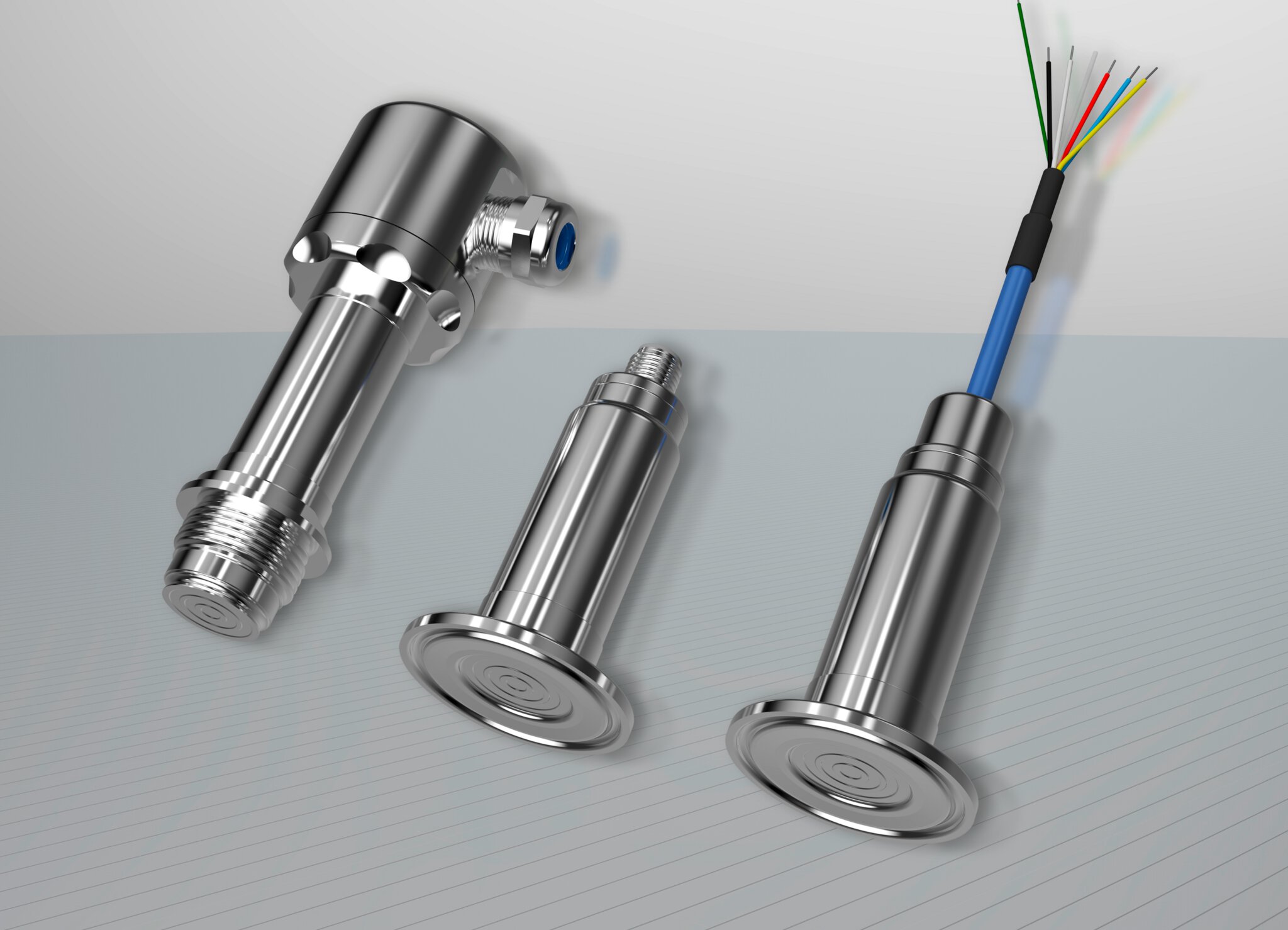

Hygienic pressure transmitter with protection classes up to IP69

JUMO TAROS S46 H Ensures Process Reliability

The pressure transmitter JUMO TAROS S46 H is designed according to hygienic requirements for precision measurement and longevity. The high-level protection type and the fully welded, compact design enable residue-free cleaning processes and high temperature compatibility for SIP and CIP processes. Its excellent active temperature compensation ensures exact pressure measurements and thereby improved process reliability.

JUMO TAROS S46 H is an ideal partner for the food industry, CIP and SIP applications, sterilizers, and autoclaves as well as for all hygienic pressure measurement applications. The pressure transmitter also ensures maximum operational safety in the pharmaceutical, medical, and biotechnology industries. Protection classes from IP65 to IP69 enable use in all areas, regardless of the environmental influences. The use of FDA compliant materials and hygienic process connections (clamp, VARIVENT, JUMO PEKA) guarantees safety and good cleanability.

The default measuring ranges of the JUMO TAROS S46 H are between 0 and 100 bar. An autoclavable version is available for special applications. The medium temperature can be between -40 and +125 °C. For a maximum of 1 hour per day the medium temperature can even be at 140 °C, which is ideal for CIP and SIP applications. Linearity and long-term stability are both very low at 0.1 %. The total accuracy at 20 °C is at the most 0.25 % of the measuring span.

The zero point correction can easily be carried out with a magnet (e.g. after the autoclave process). This way, the pressure transmitter delivers reliable measured values even over a long period.
